The CUBE Kathmandu Hybrid ONE 750 is a high-end electric bike that is designed for touring and trekking. It features a powerful Bosch fourth-generation CX drive unit that provides smooth and efficient power delivery. The bike is equipped with a high-capacity 750 Wh battery that provides a range of up to 120 km depending on the terrain and usage.
The bike also features Shimano’s easy-to-use, legendarily reliable 1x10 gears that provide smooth shifting and a wide range of gears for any terrain. It has front and rear hydraulic disc brakes that provide reliable stopping power in any weather conditions. The bike’s frame is designed for touring and trekking with an integrated luggage carrier that can carry up to 25 kg of cargo.
The CUBE Kathmandu Hybrid ONE 750 is perfect for anyone who wants to explore new places with ease and comfort. With its powerful motor, high-capacity battery, and reliable components, you can be sure that this bike will take you wherever you want to go.
FRAME
FRAME
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)SIZE
Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm)SUSPENSION
SUSPENSION FORK
SR Suntour NVX30 Coil, 100mmE-BIKE SYSTEM
DRIVE UNIT
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart SystemBATTERY
Bosch PowerTube 750REMOTE
Bosch LED RemoteDISPLAY

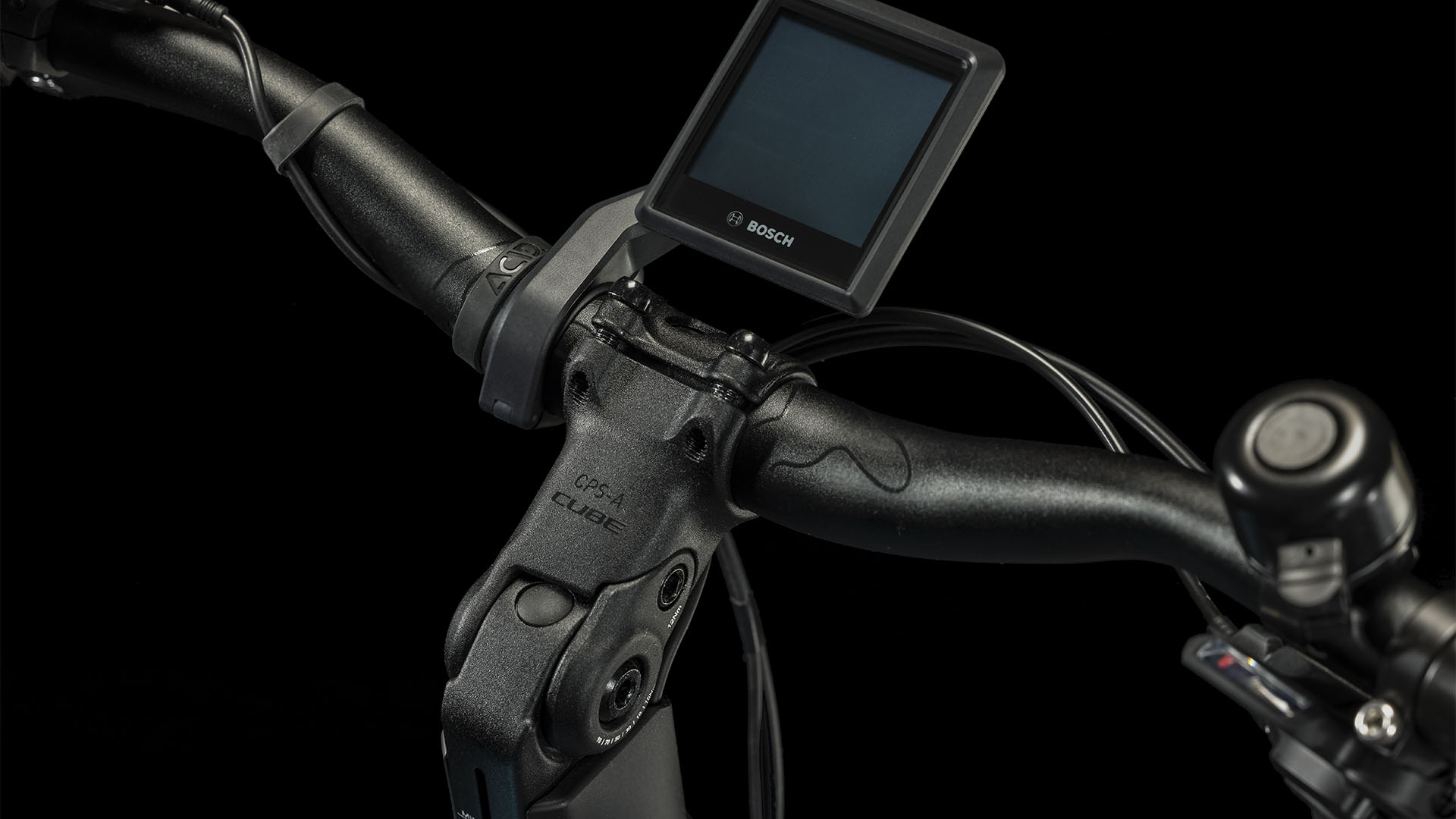

Bosch Intuvia 100CHARGER
Bosch 4ADRIVETRAIN & BRAKES
BRAKE SYSTEM
Shimano BR-MT200, Hydr. Disc Brake (180/180)REAR DERAILLEUR
Shimano Deore RD-M4120-SGS, 10-SpeedSHIFTERS
Shimano Deore SL-M4100-R, Rapidfire-PlusCRANKSET
ACID E-Crank, 40T, 175mm (EE: 170mm)CASSETTE
Shimano Deore CS-M4100, 11-42TCHAIN
KMC X10COCKPIT
HANDLEBAR
CUBE Comfort Trail Bar, 700mmSTEM
CUBE Comfort Stem Pro, 31.8mm, AdjustableGRIPS
ACID Travel ComfortHEADSET
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)WHEELS
FRONT HUB
Shimano HB-TX505, QR, CenterlockREAR HUB
Shimano FH-MT400-B, 12mm, Boost, CenterlockRIMS
Rodi Blackrock 23, 36H, Disc, Tubeless ReadyTYRES
Schwalbe Big Ben, Performance, K-Guard, 55-622FINISHING KIT
SEAT POST

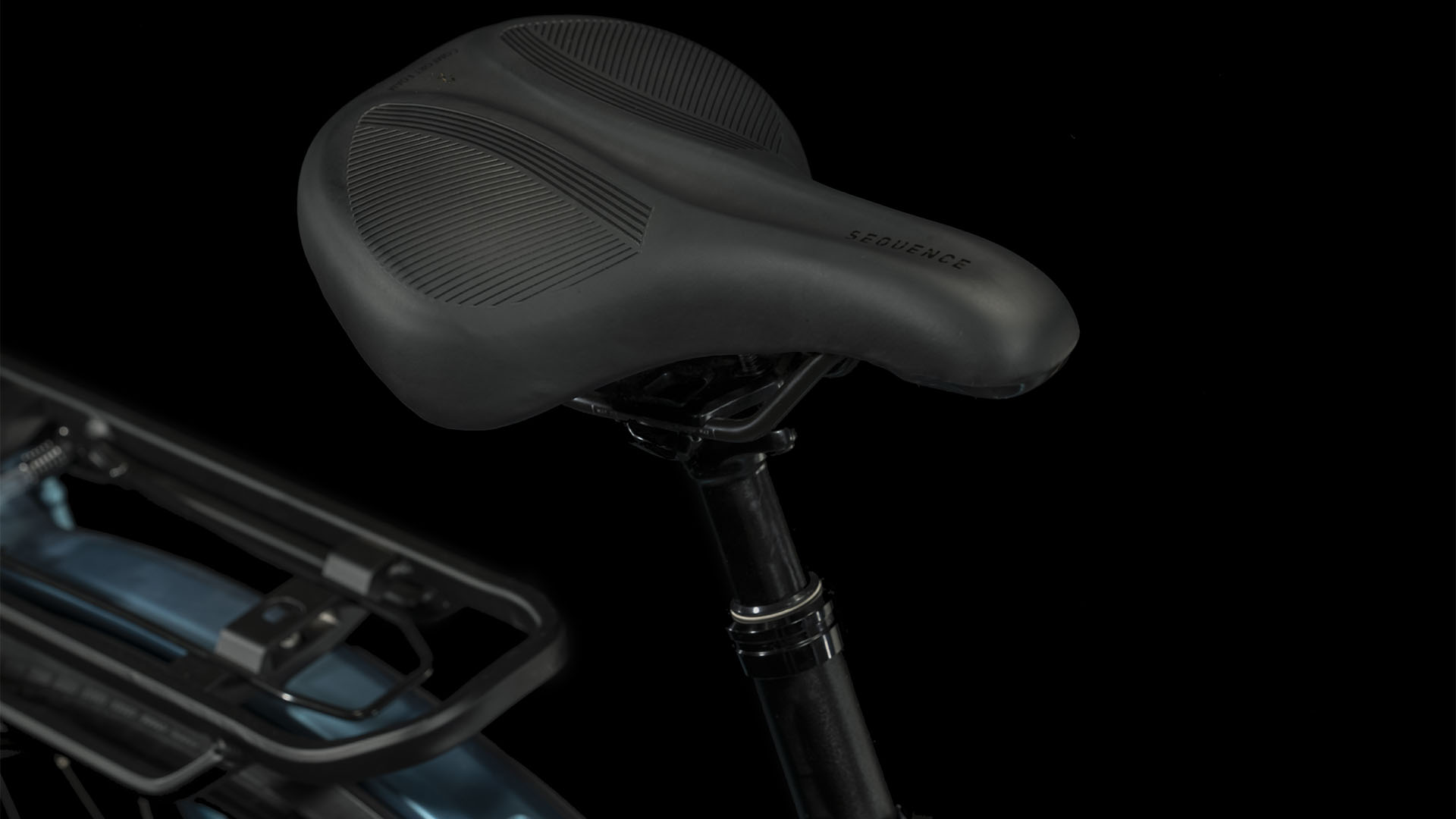

CUBE Suspension Seatpost HD, 30.9mmSADDLE
Natural Fit Sequence ComfortPEDALS
ACID PP TrekkingFRONT LIGHT

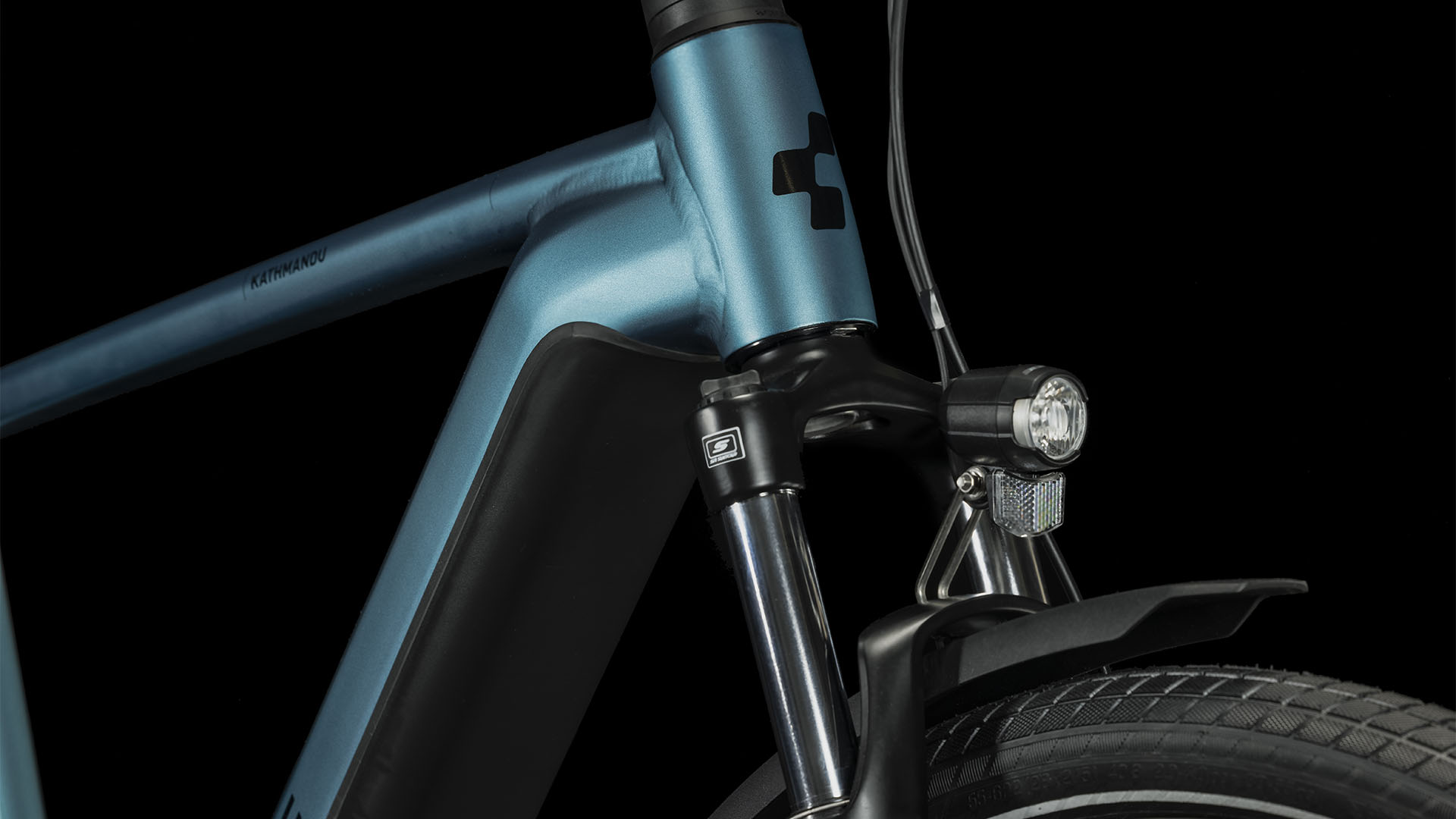

CUBE Shiny 50 Lux, 12V, DCREAR LIGHT
ACID Mudguard Rear Light PRO-E, 12V, DCKICKSTAND
ACID FM Pure KickstandMUDGUARDS
ACID 65 Integrated Carrier 3.0BELL
Easy BellCARRIER
ACID Integrated Carrier 3.0, CUBE Adapter CompatiblePRODUCT INFORMATION
WEIGHT
27,3 kgCOLOUR
blue´n´black
