Category: Castelgarden Lawn Tractors
Make: Castelgarden
Price: €4,649.00 €4,099.00

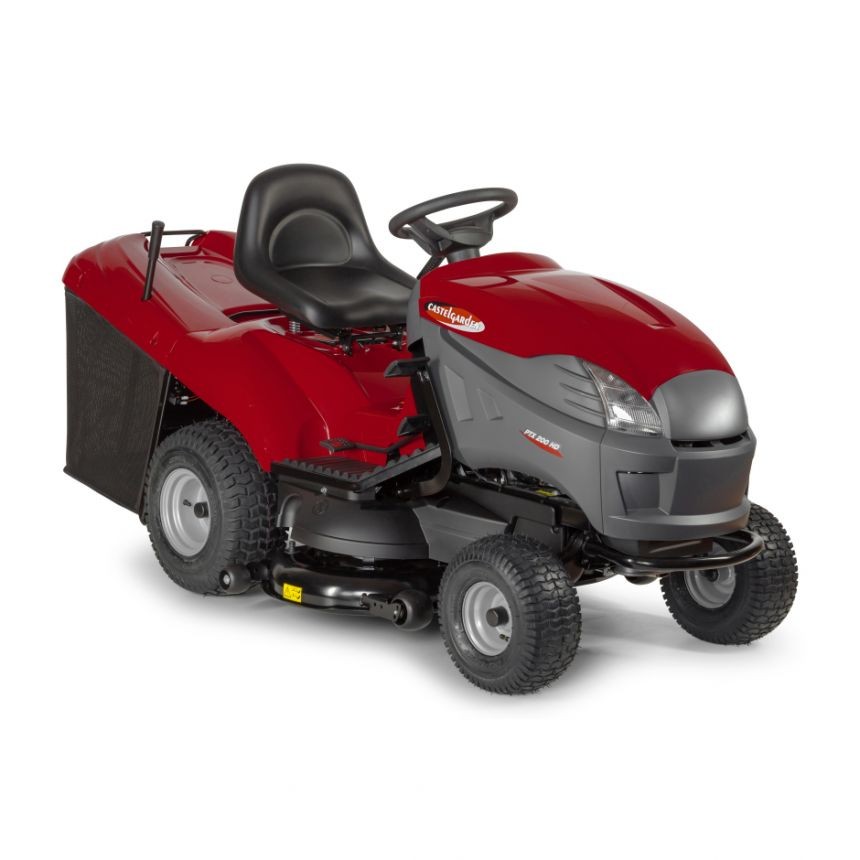

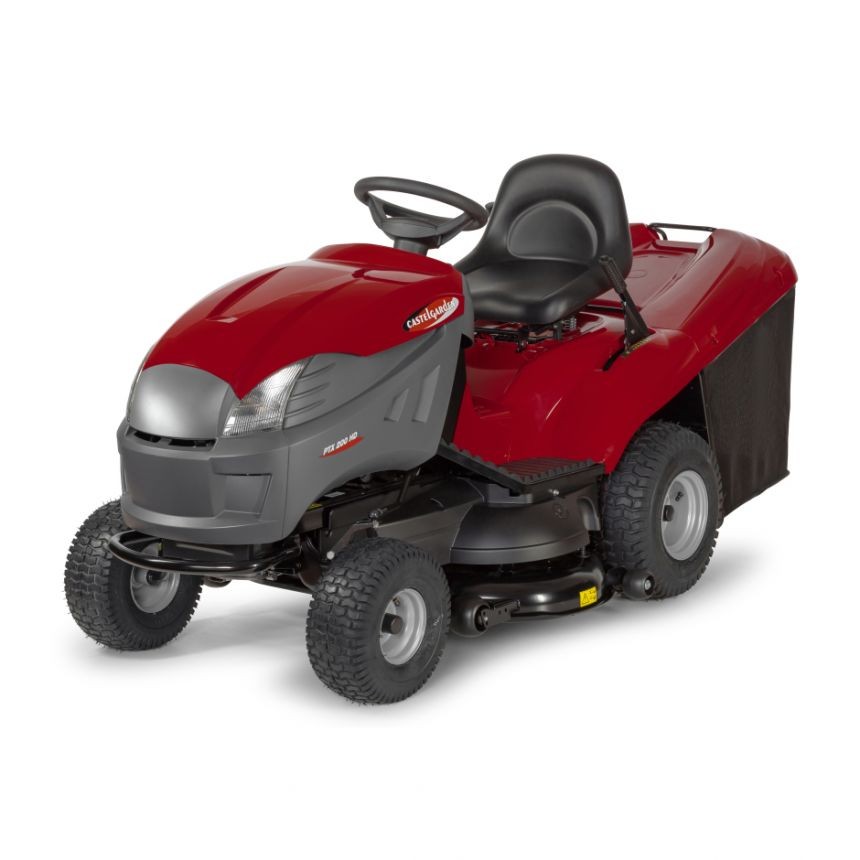

The Castelgarden PTX 200 HD ride-on mower is powered by a Twin-cylinder engine with net power output of 10.4 kW @ 2500 rpm and EasyStart electric start. This mower has a hydrostatic transmission and 102 cm cutting deck with anti-scalp wheels. The cutting height on the PTX 200 HD can be adjusted to 7 different settings (ranging from 30 to 90 mm) and the blades are engaged via an electromagnetic clutch. The grass collector can hold 300 litres of clippings. The ergonomically designed seat and soft-grip steering wheel offer good operating comfort. The PTX 200 HD has headlights.
The mower can also mulch grass clippings using the mulching kit, which can be purchased separately.
| Minimum uncut radius | 96 cm |
| Cutting method | Collecting |
| Cutting width | 102 cm |
| Reverse mowing | Yes |
| Blade rotation | Timed |
| Cutting height adjustment | Manual with lever |
| Cutting height positions | 7 positions |
| Cutting height range | 30 - 90 mm |
| Number of blades | 2 |
| Additional cutting method | Rear discharge, Mulching |
| Blade engagement type | Electric |
| Transmission type | Hydrostatic |
| Transmission method | Pedal-operated |
| Mulching kit | Optional |
| Battery charger | Optional |
| Trailer hitch kit | Optional |
| Pack weight | 274 kg |
| Product length | 2550 mm |
| Product width | 1060 mm |
| Product height | 1310 mm |
| Product weight | 229 kg |
| Battery capacity | 18 Ah |
| Power source | Petrol |
| Power | 11.6 kW |
| Engine Brand | Stiga |
| Engine model | ST 650 V-Twin |
| Displacement | 635 cm³ |
| Engine rotation speed | 2600 rpm |
| Battery Voltage | 12 V |
| Choke | Automatic |
| Engine cooling | Air |
| Fuel tank capacity | 7 l |
| Maximum working area | 5500 m² |
| Traction | Rear-wheel drive |
| Collector emptying | Manual |
| Collector capacity | 300 l |
| Steering wheel | Castelgarden ergonomic with soft grip |
| Seat type | Castelgarden smart with mid back support |
| Seat adjustment | Screws |
| Dashboard | Yes with LED |
| Front wheel size | 15x6.00-6 |
| Rear wheel size | 18x8.50-8 |
| Headlights | Conventional |
| Bumper | Yes |
| Washing link | Yes |
| Collector type | Textile |
| Pivoting front axle | Yes |
| Antiscalp wheels | 4 |
| Safety system | Seat with Safety Contact Breaker |
| Max vibration on driver's seat (m/s2) | 0.69 |
| Measured sound pressure level at operator ear dB(A) | 83.7 |
| Measured sound power level dB(A) | 100 |
| Max vibration on steering wheels (m/s2) | 2.84 |
| Guaranteed sound power level (LwA) - dB(A) | 100 |
