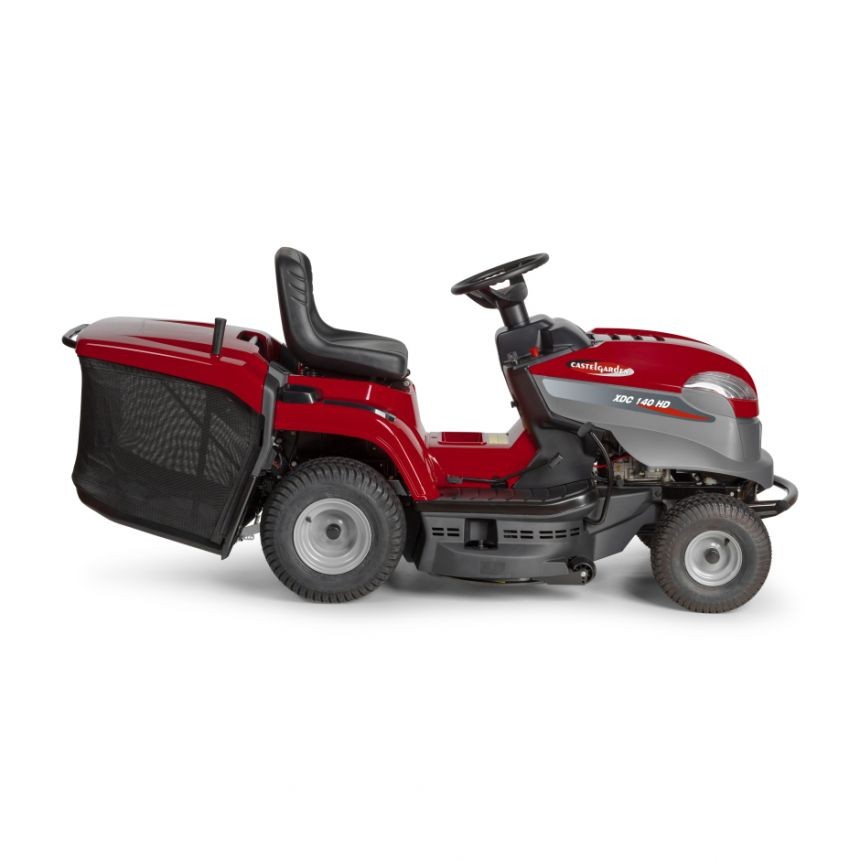

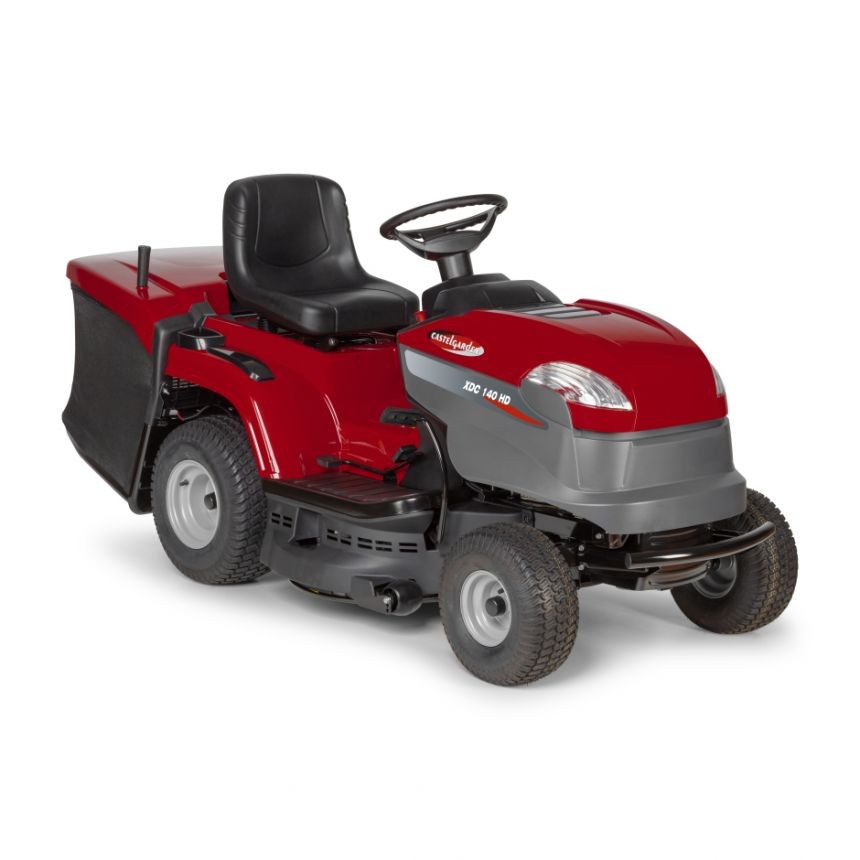

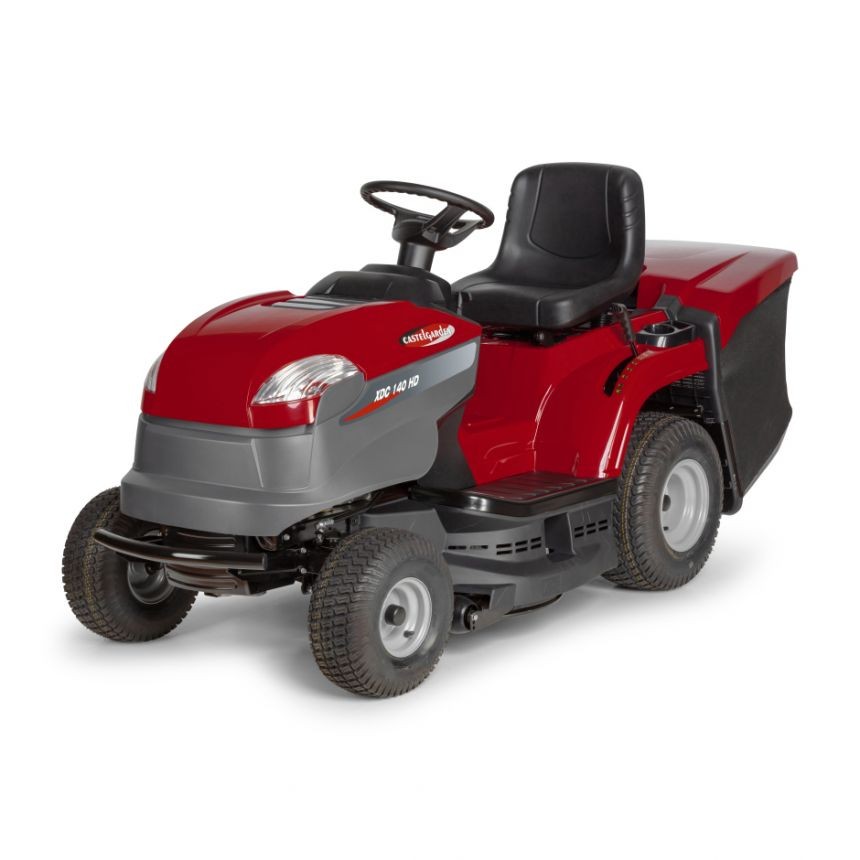

Castelgarden XDC 140 HD Lawn Tractor

Category: Castelgarden Lawn Tractors
Make: Castelgarden
Price: 2,500.00

The Castelgarden XDC 140 HD is a ride-on mower powered by a single-cylinder Briggs & Stratton petrol engine with a net power output of 5.8 kW @ 2400 rpm. The XDC 140 HD has an 84 cm cutting deck with two blades. The grass collector can hold 240 litres and the cutting height can be easily adjusted to 7 different settings (ranging from 25 to 80 mm) using the handy lever. Other advantages are the LED dashboard, ergonomically designed seat and headlights that ensure better visibility at any hour of the day.

Battery charger and tow hitch are included, but the mulching kit is an optional extra.



CUTTING SYSTEM
Minimum uncut radius80 cm
Cutting methodCollecting
Cutting width84 cm
Reverse mowingYes
Blade rotationUntimed
Cutting height adjustmentManual with lever
Cutting height positions7 positions
Cutting height range25 - 80 mm
Number of blades2
Additional cutting methodRear discharge, Mulching
Blade engagement typeElectric
TRANSMISSION
Transmission typeHydrostatic
Transmission methodPedal-operated
TOOLS KIT
Mulching kitOptional
Battery chargerSingle standard
Trailer hitch kitIncluded
OVERALL DIMENSIONS
Pack weight224 kg
Product length2338 mm
Product width880 mm
Product height1100 mm
Product weight165 kg
POWER
Battery capacity18 Ah
Power sourcePetrol
Power5.8 kW
Engine BrandBriggs & Stratton
Engine modelPowerBuilt 3130 AVS
Displacement344 cm³
Engine rotation speed2400 rpm
Battery Voltage12 V
ChokeManual
Engine coolingAir
Fuel tank capacity6 l
Maximum working area3500 m²
DRIVE SYSTEM
TractionRear-wheel drive
EQUIPMENT
Collector emptyingManual
Collector capacity240 l
Steering wheelCastelgarden ergonomic
Seat typeCastelgarden classic
Seat adjustmentScrews
DashboardYes with LED
Front wheel size15x6.00-6
Rear wheel size18x8.50-8
HeadlightsConventional
BumperYes
Washing linkYes
Collector typeTextile
Storage compartmentYes
Cup holderYes
Pivoting front axleYes
EQUIPMENT
Collector emptyingManual
Collector capacity240 l
Steering wheelCastelgarden ergonomic
Seat typeCastelgarden classic
Seat adjustmentScrews
DashboardYes with LED
Front wheel size15x6.00-6
Rear wheel size18x8.50-8
HeadlightsConventional
BumperYes
Washing linkYes
Collector typeTextile
Storage compartmentYes
Cup holderYes
Pivoting front axleYes
Antiscalp wheels2
Safety systemSeat with Safety Contact Breaker
VIBRATION AND NOISE DATA
Max vibration on driver's seat (m/s2)1.06
Measured sound pressure level at operator ear dB(A)86
Measured sound power level dB(A)100
Max vibration on steering wheels (m/s2)6.37
Guaranteed sound power level (LwA) - dB(A)100
