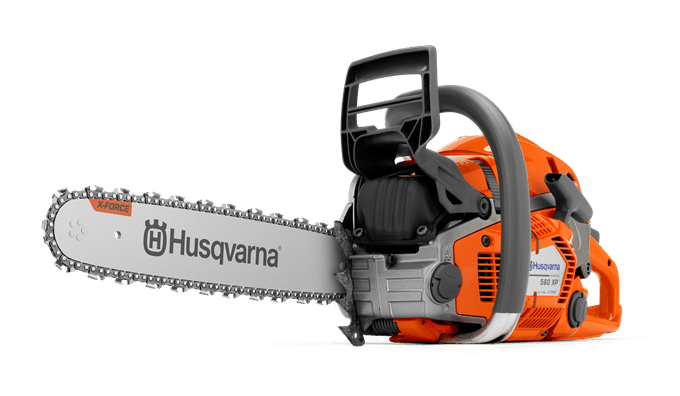

Husqvarna 560 XP | 18" Bar - Free Delivery

Category: Chainsaws
Price: 871.00 799.00
+

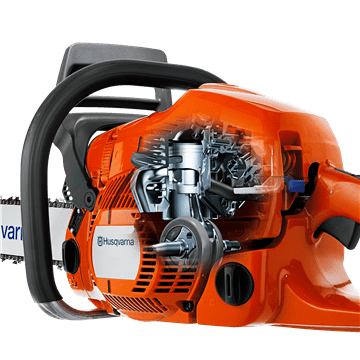

Husqvarna 560 XP® is developed for professional loggers and skilled land owners. The saw has a ground breaking design and is loaded with innovative solutions for efficient, convenient operation. Our unique X-Torq® engine technology provide more power where you need it, up to 20% less fuel consumption and 75% less exhaust emission. RevBoost™ provide instant high chain speed for extra efficient de-limbing.



 Engine

Power output
3.5 kW
Cylinder displacement
59.8 cm³
Maximum power speed
9600 rpm
Idling speed
2800 rpm
Torque, max.
3.65 Nm
Torque, max. at rpm
8100 rpm
Clutch engagement speed (±120)
4300 rpm
Fuel consumption
494 g/kWh
Fuel consumption
1.74 kg/h
Spark plug
NGK CMR6H
Electrode gap
0.5 mm
Ignition module air gap
0.3 mm
Oil pump type
Adjustable flow
Oil pump capacity Max
15 ml/min
Oil pump capacity Min
6 ml/min
Exhaust emissions (CO2 EU V)
777 g/kWh[1]

 Equipment

Bar length (inch)
15"
Chain type
H25
Sprocket type
Rim 7
Recommended bar length, max
20 in
Recommended bar length, min
13 in

 Dimensions

Weight (excl. cutting equipment)
5.9 kg

 Lubricant

Lubricant type
Husqvarna 2 stroke or equiv. at 50:1
Oil tank volume
0.33 l

 Sound and Noise

Sound power level, guaranteed (LWA)
118 dB(A)
Sound power level, measured
116 dB(A)
Sound pressure level at operators ear
106 dB(A)

 Vibration

Equivalent vibration level (ahv, eq) front handle
4.4 m/s²
Equivalent vibration level (ahv, eq) rear handle
5.3 m/s²
