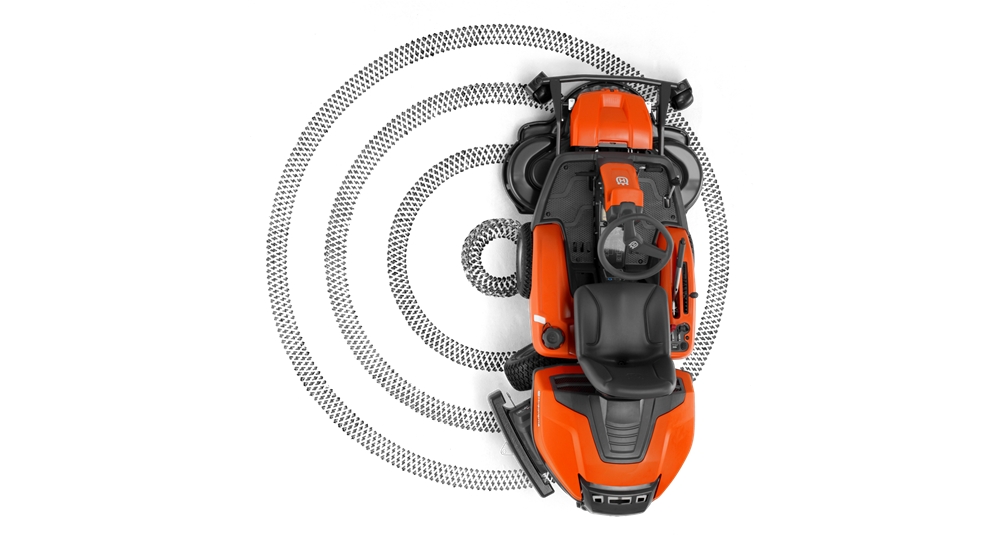

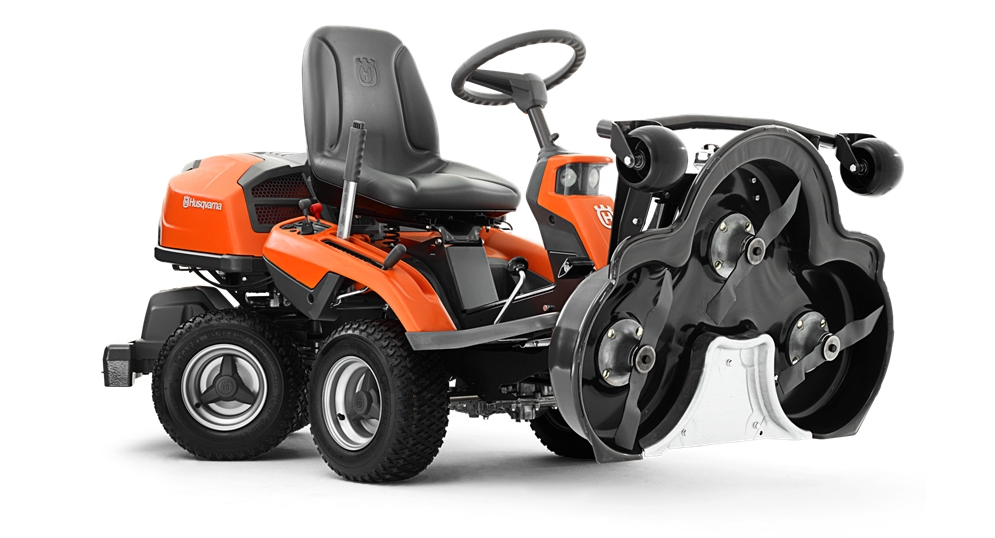

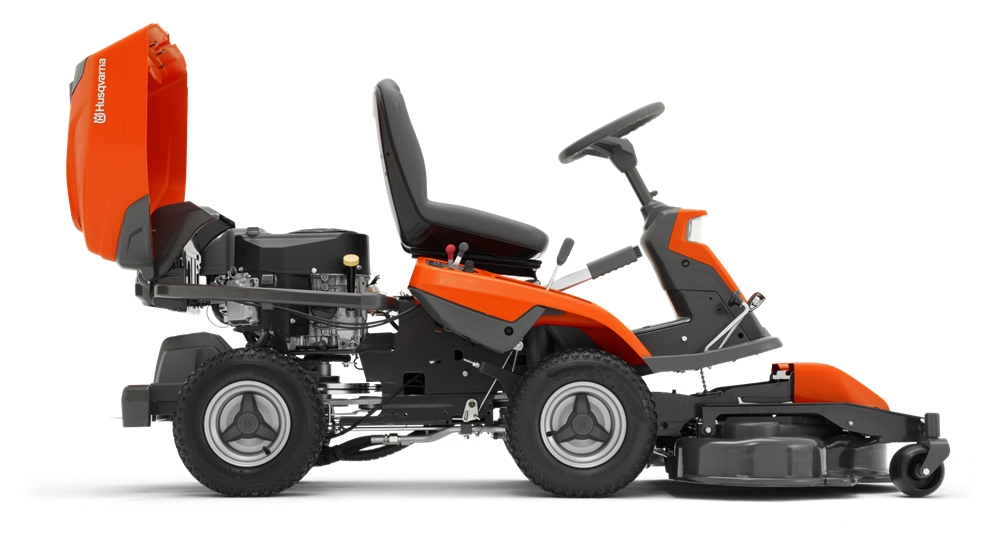

Powerful and versatile Rider with twin-cylinder engine and optional 94, 103 or 112 cm Combi cutting decks, offering first-class BioClip® and rear ejection cutting. Suited for landowners who demand superior efficiency, maneuverability and perfect results all year round. The articulated steering system and front-mounted cutting deck enables intuitive operation, excellent mowing accessibility and great overview of your working area. In short – this Rider gives you the ultimate driving experience. Can easily be fitted with a number of attachments such as broom, snow blade and snow thrower, for maximum output throughout the year. Features like pedal-operated hydrostatic transmission, easy-access controls, headlights and cutting deck service position, makes operating and servicing this Rider a pleasure.
Specifications for R 316T
Engine| Engine manufacturer | Kawasaki |
|---|
| Engine name | FS Series V-Twin |
|---|
| Net power at preset rpm | 9.6 kW @ 2900 rpm |
|---|
| Cylinder displacement | 603 cm³ / 36.8 cu.inch |
|---|
| Cylinders | 2 |
|---|
| Engine cooling | Air |
|---|
| Generator | 15 A |
|---|
| Battery | 12 V 24 Ah |
|---|
| Fuel Type | Gasoline |
|---|
| Fuel tank volume | 12 lit / 3.2 gal. |
|---|
| Engine lubrication type | Full pressure |
|---|
| Oil filter | Included |
|---|
Drive system| Transmission type | Hydrostatic |
|---|
| Transmission manufacturer | Tuff Torq |
|---|
| Transmission model | K46 |
|---|
| Drive method | Pedal-operated |
|---|
| Speed forward, min-max | 0-9 km/h / 0-5.6 mph |
|---|
| Speed reverse, min-max | 0-9 km/h / 0-5.6 mph |
|---|
| Safety limit slopes | 10 ° |
|---|
Cutting deck| Uncut circle | 30 cm / 11.8 inch |
|---|
| Cutting width, Min-Max | 94-112 cm / 37-44.1 inch |
|---|
| Optional cutting decks | Combi 94, Combi 103, Combi 112 |
|---|
| Cutting deck type | Combi |
|---|
| Cutting deck material | Steel |
|---|
| Cutting methods | BioClip®/Rear discharge |
|---|
| Cutting height, min-max | 25 - 75 mm / 1 - 3 inch |
|---|
| Cutting height steps | 9 pcs |
|---|
| Blade engagement | Automatic |
|---|
| Blades | 3 |
|---|
| Powder-coated cutting deck | Included |
|---|
Equipment| Hour meter | Digital with pre-programmed service intervals |
|---|
Other| Seat material | Vinyl |
|---|
| Seat suspension | Included |
|---|
| Seat back height | High |
|---|
| Foldable seat | Included |
|---|
Dimensions| Tyre dimensions, front | 165/60-8 |
|---|
| Tyre dimensions, rear | 165/60-8 |
|---|
| Wheelbase | 88.7 cm / 34.9 " |
|---|
| Ground clearance | 105 mm / 4.13 inch |
|---|
| Base machine, length | 202 cm / 79.5 inch |
|---|
| Base machine, width | 89 cm / 35 inch |
|---|
| Base machine, height | 115 cm / 45.3 inch |
|---|
| Weight | 239 kg / 526.9 lbs |
|---|
| Gross weight towed | 125 kg / 275.5 lbs |
|---|
Sound and noise data| Sound pressure level at operators ear | 83 dB(A) |
|---|
| Sound power level, measured | 97 dB(A) |
|---|
| Sound power level, guaranteed (LWA) | 98 dB(A) |
|---|
Vibrations| Vibration level steering wheel | 2.5 m/s² |
|---|
| Vibration level seat | 0.7 m/s² |
|---|
