Husqvarna R 320X AWD C/W 103cm deck

Price: 9,844.00 8,599.00

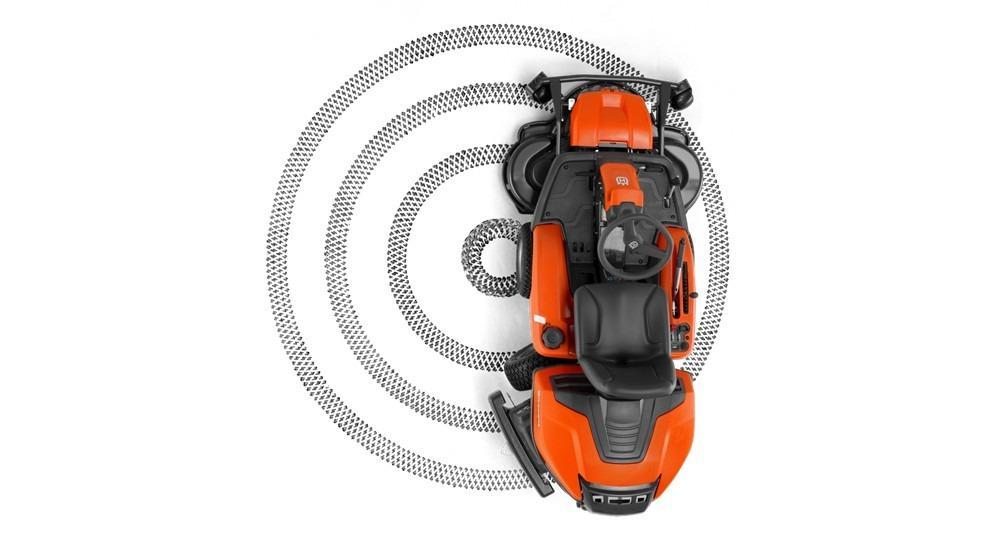

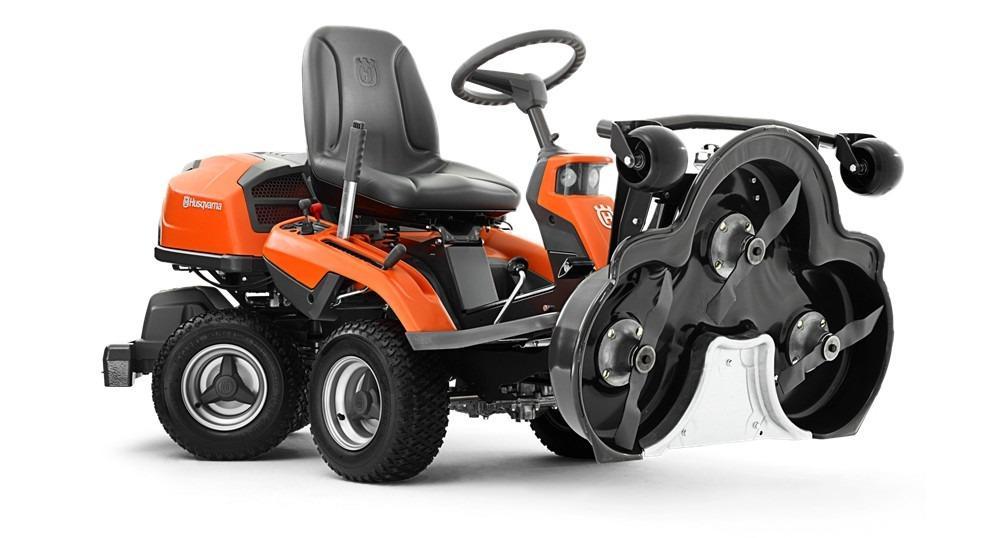

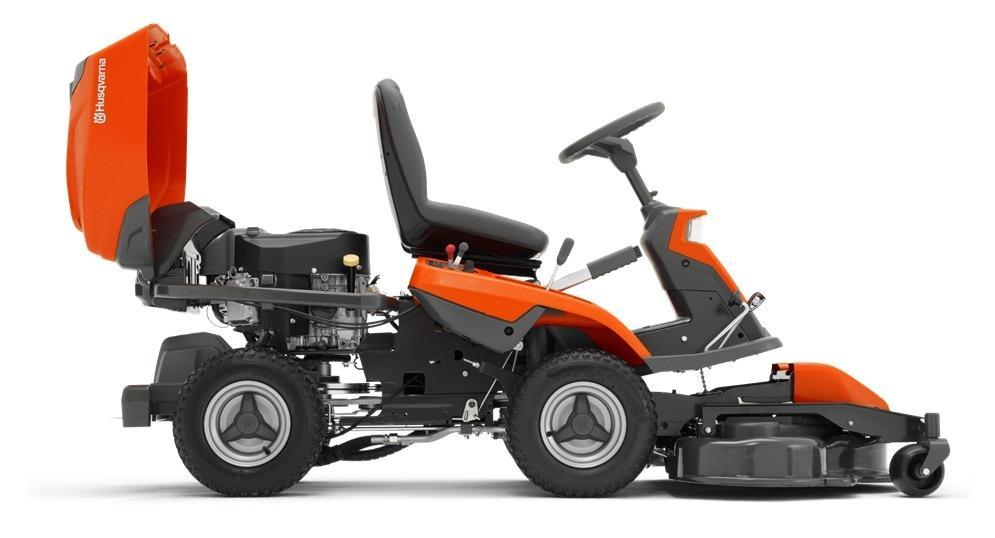

Versatile Rider with All-Wheel-Drive and optional 94, 103 or 112 cm Combi cutting decks, offering first-class BioClip® and rear ejection cutting. Suited for landowners who demand superior efficiency, maneuverability and perfect results all year round. The articulated steering system and front-mounted cutting deck enables intuitive operation, excellent mowing accessibility and great overview of your working area. All-Wheel-Drive remarkably increases and secures handling on uneven, wet and slippery areas as well as on slopes. In short – this Rider gives you the ultimate driving experience. Can easily be fitted with a number of attachments such as broom, flail mower, snow blade and snow thrower, for maximum output throughout the year. Features like pedal-operated hydrostatic transmission, easy-access controls and cutting deck service position, makes operating and servicing this Rider a pleasure.


Husqvarna HS 546AE 546cm3, Hydrostatic AWD, 94-112 cm / 37-44.1 inch

HS 546AE
Engine manufacturerHusqvarna
Engine name
Net power at preset rpmN/A
Cylinder displacement546 cm³ / 30.5 cu.inch
Engine coolingAir
Battery12 V 24 Ah
Fuel TypeGasoline
Fuel tank volume12 lit / 3.2 gal.
Engine lubrication typeFull pressure
Oil filterIncluded
Drive system
Transmission typeHydrostatic AWD
Transmission manufacturerKanzaki
Transmission modelK574
Drive methodPedal-operated
Speed forward, min-max0-9 km/h / 0-5.6 mph
Speed reverse, min-max0-9 km/h / 0-5.6 mph
Safety limit slopes10 °
Cutting deck
Uncut circle30 cm / 11.8 inch
Cutting width, Min-Max94-112 cm / 37-44.1 inch
Optional cutting decksCombi 94, Combi 103, Combi 112
Cutting deck typeCombi
Cutting deck materialSteel
Cutting methodsBioClip®/Rear discharge
Cutting height, min-max25 - 75 mm / 1 - 3 inch
Cutting height steps10 pcs
Blade engagementAutomatic
Powder-coated cutting deckIncluded


Hour meterDigital with pre-programmed service intervals
Seat materialVinyl
Seat suspensionIncluded
Seat back heightMedium
Foldable seatIncluded
Tyre dimensions, front165/60-8
Tyre dimensions, rear165/60-8
Wheelbase88.7 cm / 34.9 "
Ground clearance85 mm / 3.4 inch
Base machine, length202 cm / 79.5 inch
Base machine, width89 cm / 35 inch
Base machine, height115 cm / 45.3 inch
Weight253 kg / 557.7 lbs
Gross weight towed125 kg / 275.5 lbs
Sound and noise data
Sound pressure level at operators ear84 dB(A)
Sound power level, measured98 dB(A)
Sound power level, guaranteed (LWA)99 dB(A)
Vibration level steering wheel2.5 m/s²
Vibration level seat0.7 m/s²
