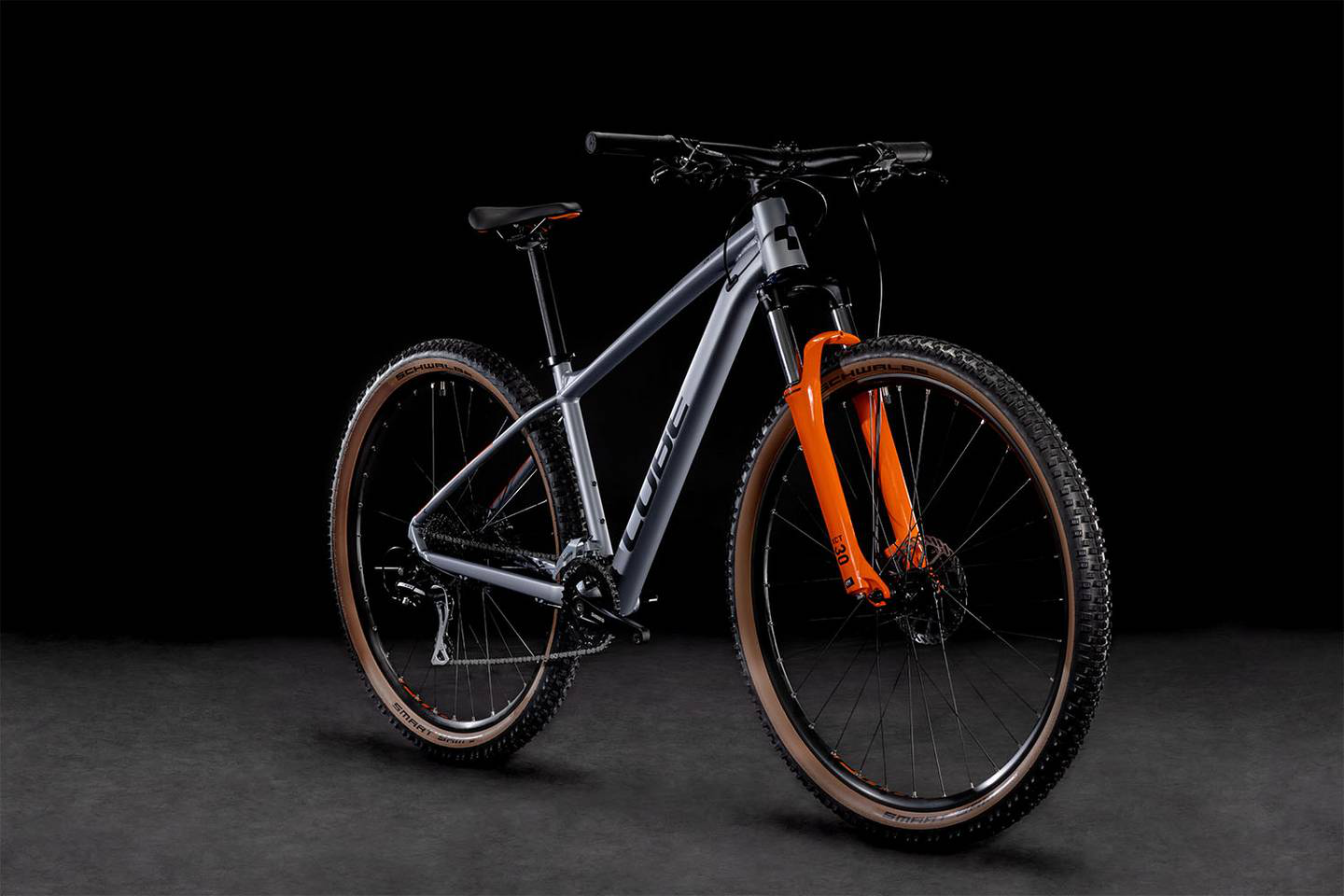

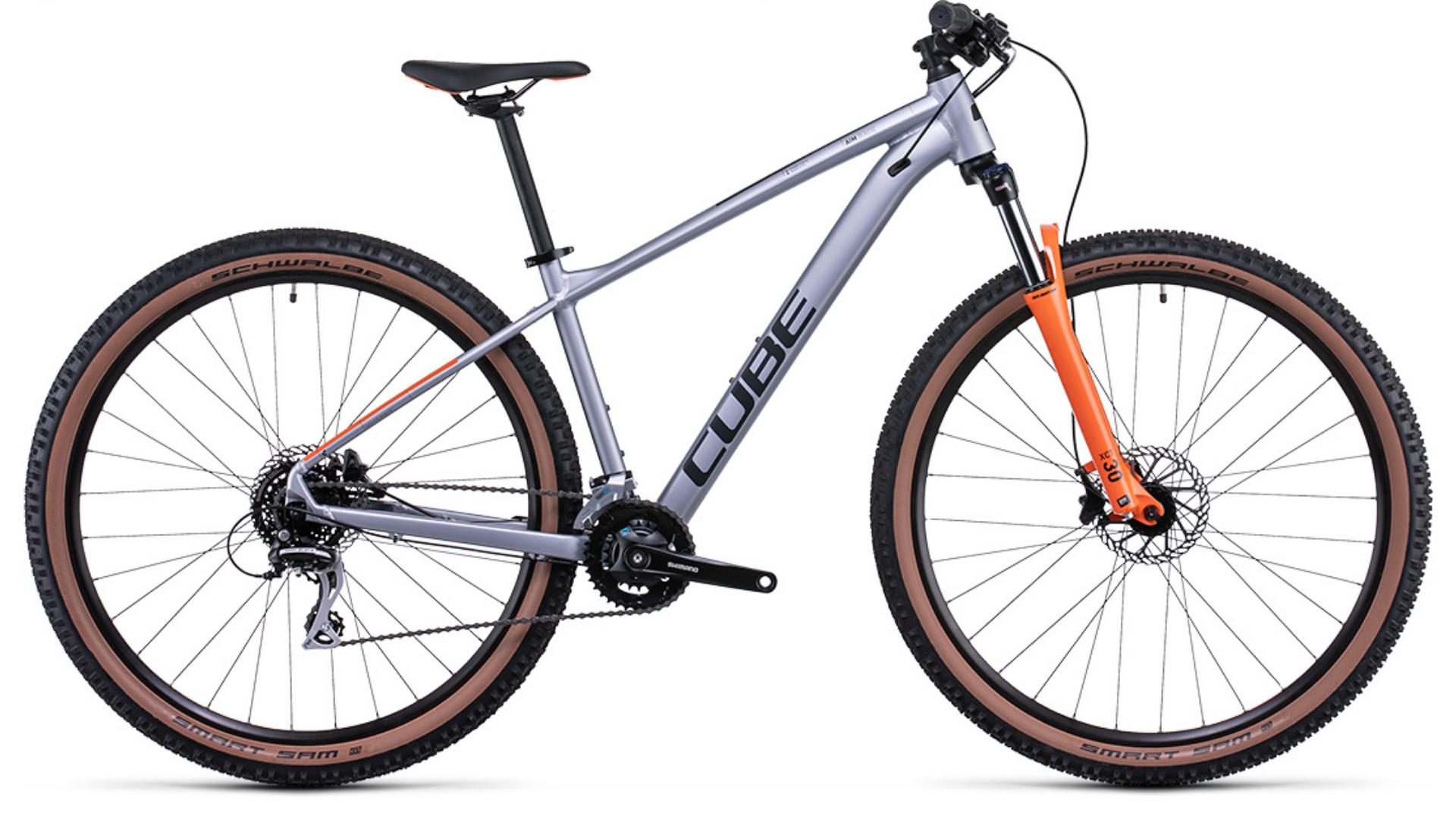

CUBE AIM Race

CUBE AIM Race

Category: Pedal Bikes
Make: CUBE
Price: 699.00
+

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

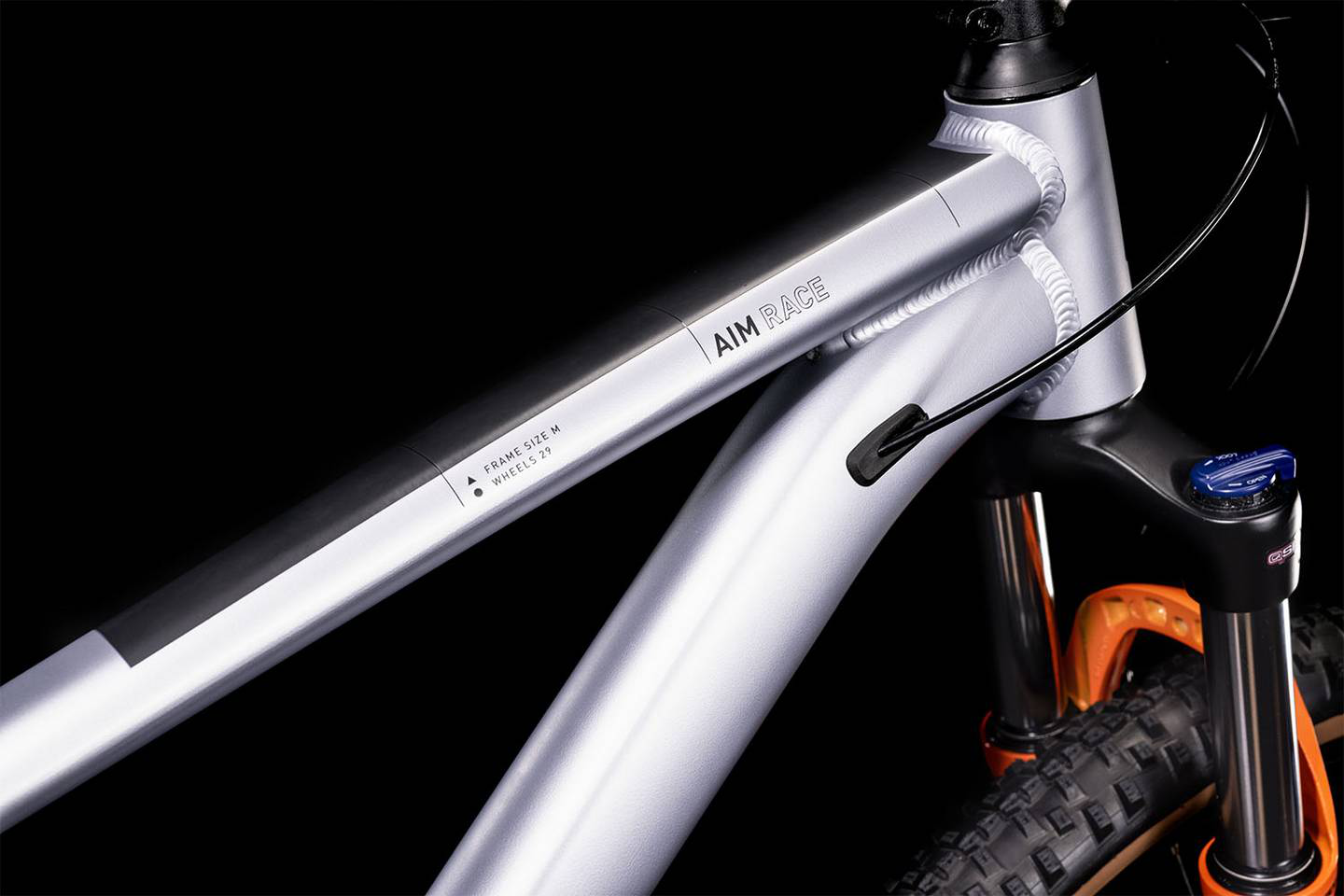

  • FRAME Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
  • SIZE Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")

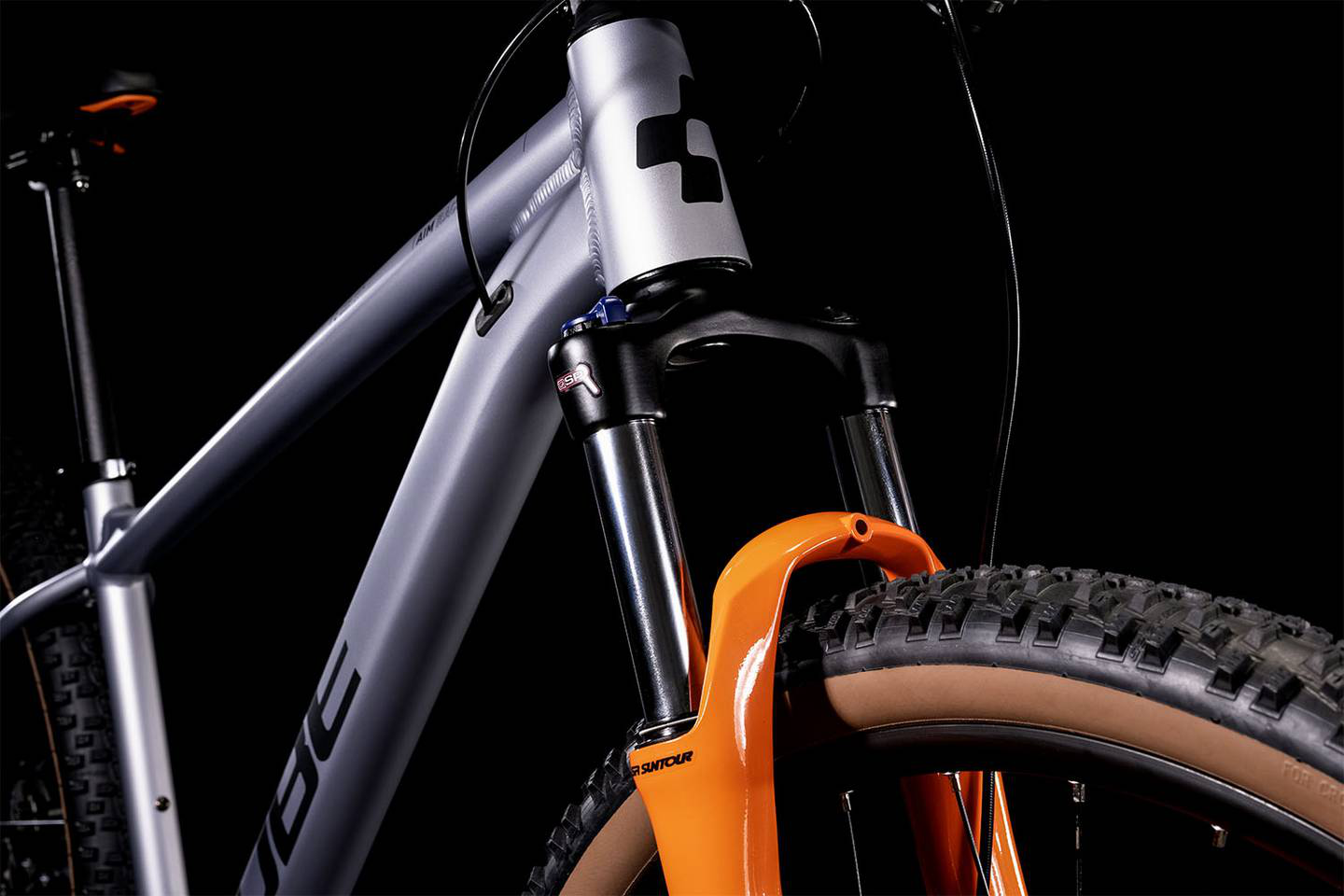

  • FORK SR Suntour XCT Disc, 100mm, Lockout

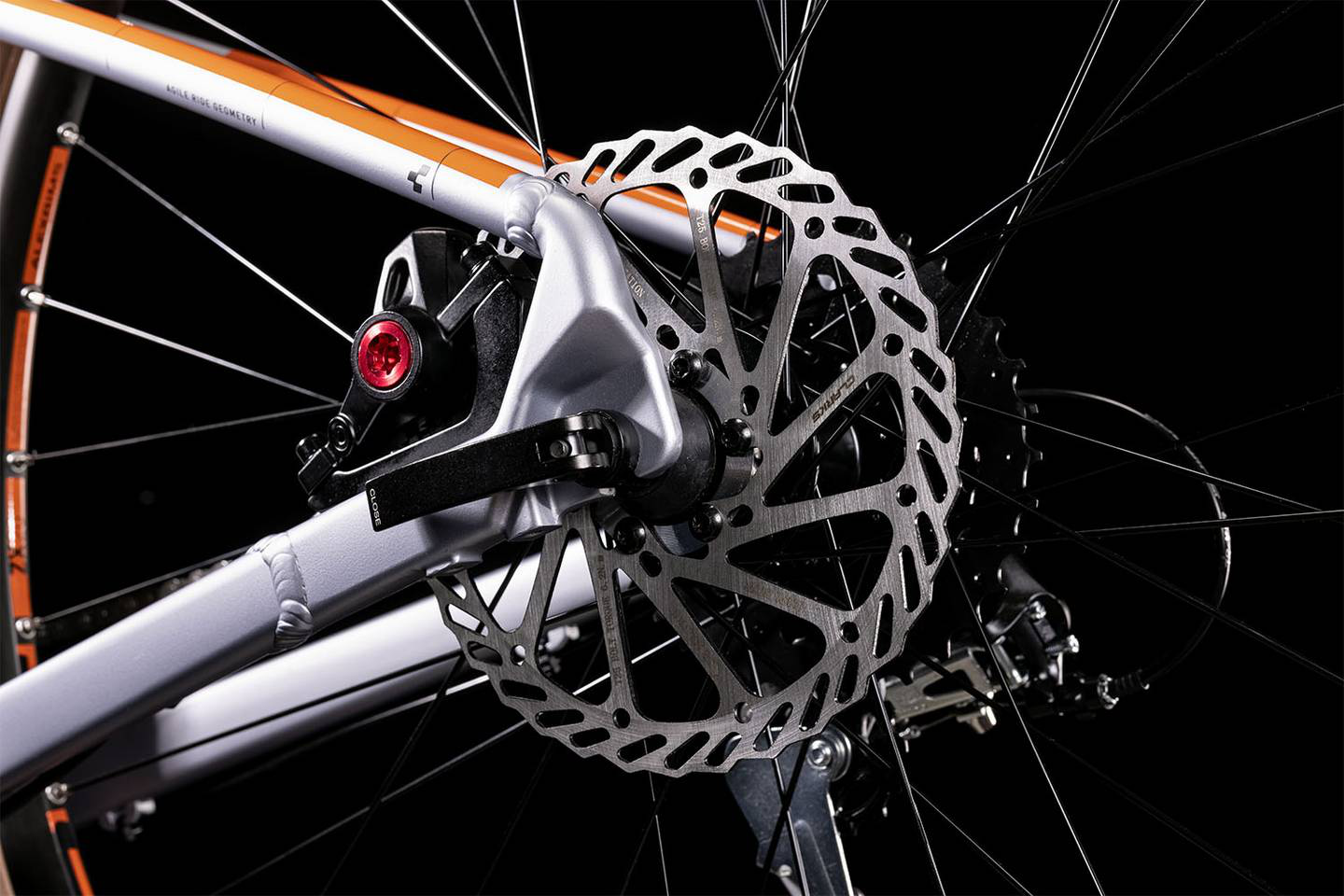

  • BRAKE SYSTEM Clarks M2, Hydr. Disc Brake, PM/PM (160/160)
  • REAR DERAILLEUR Shimano RD-M360, 8-Speed
  • FRONT DERAILLEUR Shimano FD-M315, Top Swing, 31.8mm Clamp
  • SHIFTERS Shimano SL-M315, Rapidfire-Plus
  • BOTTOM BRACKET Thun Paso-ML, 73mm BSA
  • CRANKSET Shimano FC-M315, 36x22T

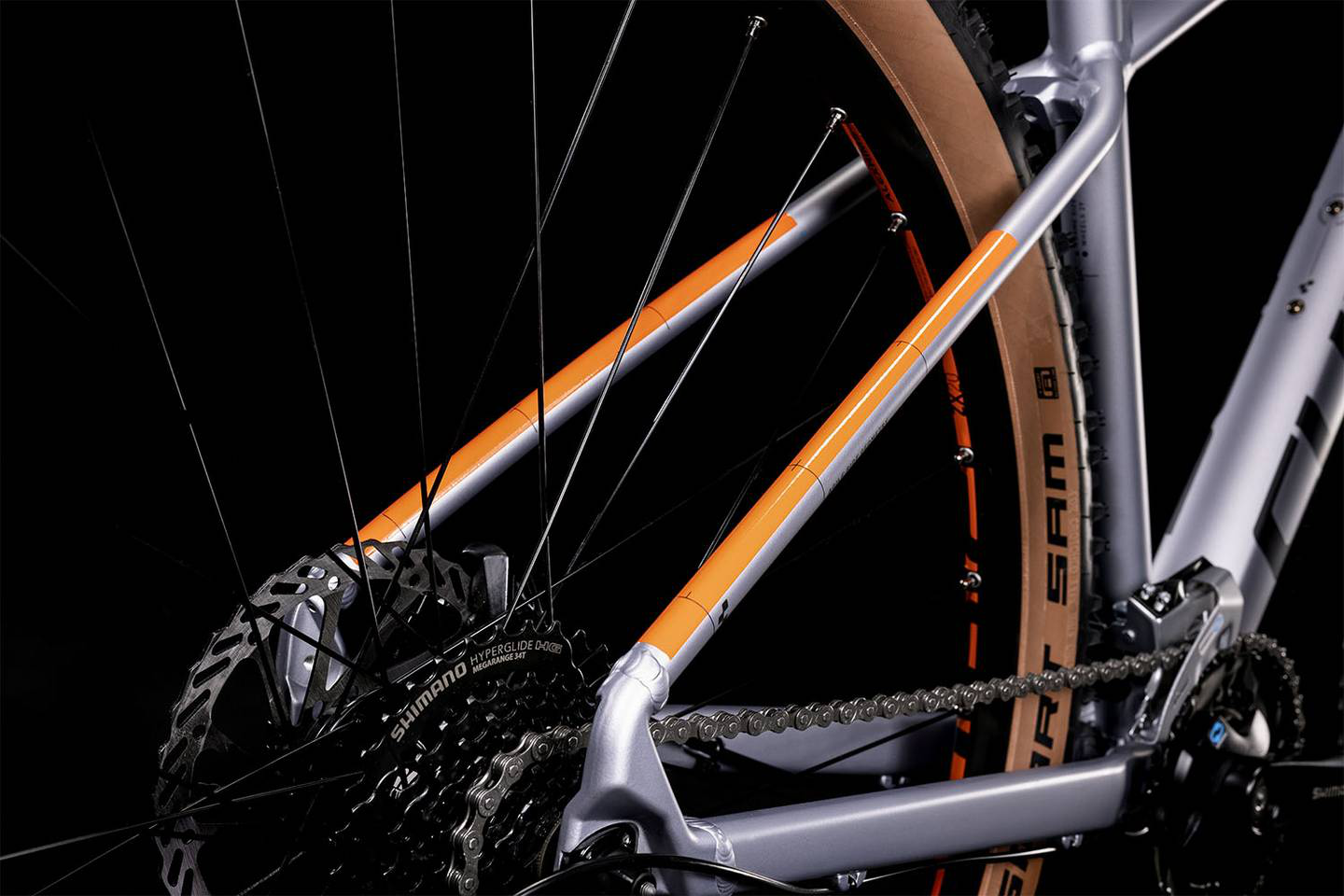

  • CASSETTE Shimano CS-HG31, 11-34T
  • CHAIN KMC Z8.3
  • FRONT HUB CUBE Alloy Light, QR, 6-Bolt
  • REAR HUB CUBE Alloy Light, QR, 6-Bolt
  • RIMS CUBE ZX20, 32H, Disc
  • TYRES Schwalbe Smart Sam, Active, 2.25
  • STEM CUBE Performance Stem Pro, 31.8mm
  • HANDLEBAR CUBE Rise Trail Bar, 680mm
  • GRIPS ACID React
  • SEAT POST CUBE Performance Post, 27.2mm
  • SEATCLAMP CUBE Varioclose, 31.8mm
  • SADDLE Natural Fit Venec Lite
  • HEADSET CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
  • PEDALS ACID PP MTB
  • WEIGHT 14,1 kg
  • COLOUR silver´n´orange
  • ART. NO 501410
